Muaj ib qho kev ua tsis tiav uas zoo nkaus li zoo li lub taub hau tawg tab sis qhov tseeb yog ob qho - duas qhov haum tsis raug. Tus ncej snaps ntawm phau ntawv journal, tsuas yog tom qab lub rooj zaum bearing. Tus neeg yuav khoom xav tias cov khoom tsis raug thiab nug txog warranty. Cuaj lub sij hawm ntawm kaum lub ntsej muag locknut tsis square rau cov xov axis, thiab ncej kawg tau khoov ib feem ntawm ib millimeter ntawm txhua lub kiv puag ncig kom txog thaum nws tso tseg.
Tsim nyog paub ua ntej koj nruj dab tsi.
Qhov locknut tiag tiag tuav

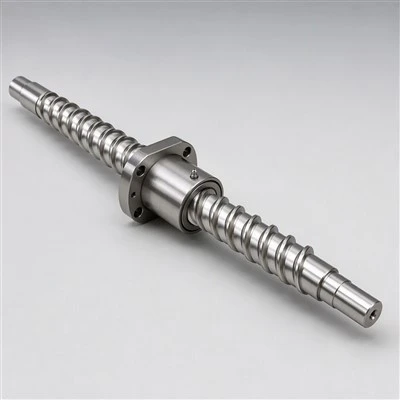

Ntawm qhov kawg ntawm lub pob ntsia hlau, lub angular contact bearings xav tau axial clamping. Cov ntawv xov xwm ncej yog muab tso tseg, threaded, thiab lub locknut rub cov kabmob sab hauv kev sib tw rau lub xub pwg nyom. Qhov clamp teeb tsa cov kabmob preload, thiab cov kabmob preload yog dab tsi muab cov axis nws axial rigidity.
Tau nws txoj cai thiab cov kabmob pawg coj tus cwj pwm zoo li ib qho khoom siv. Tau txais nws tsis ncaj ncees lawm nyob rau hauv ob qho tib si kev taw qhia thiab koj muaj teeb meem: dhau xoob thiab tag nrho axis muaj axial ua si tsis muaj pes tsawg tus txiv ntoo preload tuaj yeem kho, nruj heev thiab cov bearings khiav kub thiab tuag ntxov.
RN series qhov ntev
| Qauv | Qhov siab H (mm) | OD A (mm) | E (mm) | Teem- ntsia hlau xov M | Hex B (mm) | Ncej thread D |
|---|---|---|---|---|---|---|
| RN05/RN05-N | 5 | 12.5 | 2.7 | M5×0.5 | 11 | M4×0.5 |
| RN06/RN06-N | 5 | 13.5 | 2.7 | M5×0.5 | 12 | M4×0.75 |
| RN08 / RN08-N | 6.5 | 16.4 | 4 | M5×0.5 | 14 | M8×1.0 |
| RN10 / RN10-N | 8 | 19 | 5.5 | M5×0.5 | 16 | M10×1.0 |
| RN12 / RN12-N | 8 | 22.6 | 5.5 | M6×0.7 | 19 | M12×1.0 |
| RN15 / RN15-N | 8 | 25.8 | 4.75 | M6×0.7 | 22 | M15×1.0 |
Source: OND precision kis tau tus mob cov khoom catalogue, Locknut RN Series, P45.
Nco ntsoov cov xov pitches. M10 × 1.0 qhov twg tus qauv ntxhib M10 yuav yog 1.5, M15 × 1.0 tawm tsam qhov ntxhib ntawm 2.0. Lub suab zoo tsis yog kev sib tsoo ntawm cov khoom sib tsoo - nws muab kev tswj xyuas kom zoo ntawm clamp quab yuam ib qib ntawm kev sib hloov, thiab nws tiv taus xoob hauv kev co zoo dua li ntxhib. Yog hais tias ib tug distributor muab rau koj ib co coarse - xov txiv ntseej raws li ib tug sib npaug, nws tsis yog ib tug.
Cov -N variants nqa tib qhov ntev nrog kev kho deg sib txawv. Qhia meej meej yog tias koj daim ntawv thov raug ntxuav lossis ntub.
Sib piv cov txiv ntoo mus rau qhov kawg ncej
Lub locknut xov yuav tsum phim cov ntawv xov xwm xov uas tau txiav rau ntawm cov ntsia hlau. Rau peb BK-series kho- kawg machining, cov ntawv xov xwm xov xwm khiav raws li hauv qab no:
| Pab txhawb nqa | Ntsia Hlau ncej OD (mm) | Phau ntawv xov xwm | Phau ntawv dia. (mm) |
|---|---|---|---|
| BK 10 | 12 / 14 / 15 | M10×1 | 10 |
| BK 12 | 14 / 15 / 16 | M12×1 | 12 |
| BK 15 | 18 / 20 | M15×1 | 15 |
| BK17 | 20 / 25 | M17×1 | 17 |
| BK 20 | 25 / 28 | M20×1 | 20 |
| BK 25 | 32 / 36 | M25×1.5 | 25 |
| BK 30 | 36 / 40 / 45 | M30×1.5 | 30 |
| BK 35 | 45 | M35×1.5 | 35 |
| BK40 | 50 | M40×1.5 | 40 |
Source: OND catalogue, Tsau Sab BK Machining Loj, P46.
Nyeem thoob plaws: 20 hli ntsia hlau khiav hauv kev txhawb nqa BK15 tau txais M15 × 1 phau ntawv, uas siv RN15. Lub 20 hli ntsia hlau nyob rau hauv ib qho kev txhawb nqa BK17 tau txais M17 × 1 hloov - txawv txiv ntoo. Kev txhawb pab pawg xaiv txiav txim siab cov xov xwm xov xwm, thiab cov xov xwm xov xwm txiav txim siab lub xauv. Tib lub taub hau taub hau, ob lub teb sib txawv.
Qhov no yog ib qho kev txiav txim ntau tshaj plaws ntawm ncej-kawg kho vajtse. Cov neeg xaj los ntawm txoj kab uas hla.
0.01 hli
Ntawm no yog daim duab piav qhia cov ntawv xov xwm snapped.
Lub ntsej muag lub ntsej muag ntawm lub ntsej muag thiab cov xov axis ntawm lub locknut yuav tsum yog nyob rau ib leeg, thiab lub ntsej muag ntawm lub locknut yuav tsum sib npaug zos rau ib leeg. Yog hais tias lawv tsis yog, zawm lub txiv ntoo khoov lub ncej kawg, thiab rov khoov dua nws. HIWIN qhia txog qhov txwv ncaj qha: qhov deflection ntsuas ntawm qhov kawg ntawm cov ntsia hlau ncej, ua ntej tiv thaiv tom qab lub xauv xauv,yuav tsum tsis pub tshaj 0.01 mm (HIWIN Ballscrews Technical Information, Appendix A2-3).
Qhov ntawd yog ib qho kev kuaj ncaj nraim nrog lub ntsuas ntsuas thiab peb caug vib nas this ntawm koj lub sijhawm. Qhia tus ncej kawg, zawm lub txiv ntoo kom ua haujlwm torque, saib lub koob. Tshaj ib puas, ib yam dab tsi tsis yog square - rub nws sib nrug thiab nrhiav seb dab tsi ua ntej koj khiav lub tshuab.
Tsis tas li ntawd los ntawm tib lub hauv paus: cov kaum ntse ntse ntawm lub ncej kawg yuav tsum zam, vim tias lawv mloog zoo rau kev ntxhov siab. Ib phau ntawv xov xwm tsim nyog muaj kev hloov pauv los yog chamfered ntawm lub xub pwg, ua tiav rau Ra0.4. Yog tias tus neeg muag khoom muab koj lub taub hau nrog lub kaum ntse ntse sab hauv ntawm lub xub pwg nyom, qhov ntawd yog qhov qaug zog tawg tos kom pib.
Haum nws yam tsis muaj teeb meem uas koj tab tom sim zam
Ntxuav cov xov thiab lub ntsej muag zaum. Txhua nti daig nyob rau hauv lub ntsej muag txiv ntseej qaij nws, thiab cov txiv ntseej tilted yog tag nrho hom tsis ua haujlwm.
Tighten zuj zus, thiab xyuas cov ncej- qhov ntsuas qhov kawg nyeem thaum koj mus es tsis yog qhov kawg nkaus xwb.
Tom qab ntawd xauv lub teeb screws. Ob lub hexagon socket teem screws nrog tooj dag teeb daim dais ntawm cov xov xwm xov xwm thiab nres cov txiv ntoo thim rov qab. Cov khoom siv tooj dag muaj nyob yog li cov txheej txheem screws tsis raug tom thiab ua rau cov xov puas - yog tias lawv ploj lawm ntawm cov khoom siv pheej yig, tsis txhob hloov cov hlau ncaj ncaj ncaj rau cov xov.
Tsis txhob siv rauj thiab xuas nrig ntaus ntawm cov txiv ntoo. Nws ua haujlwm, nws ceev ceev, thiab nws deforms lub ntsej muag lub ntsej muag txaus los rov qhia qhov yuam kev squareness.
Kev txiav txim
Qhia rau peb tus qauv ntsia hlau thiab qhov chaw txhawb nqa koj siv ntawm qhov kawg ruaj khov - ob qhov tseeb no txiav txim siab cov xov xov xov xwm thiab yog li ntawd cov txiv ntoo. Yog tias koj yog machining ncej xaus koj tus kheej, nug BK machining kos duab rau koj qhov loj thiab ua raws li cov ntawv xov xwm txoj kab uas hla thiab cov xov ntev raws nraim. Peb muab cov locknuts xoob los yog ua ntej- haum nrog chav txhawb nqa raws li qhov sib txuam, uas tshem tawm cov teeb meem sib txuam tag nrho.
